910 Airguns Custom Parts

2.5" Plenum Mk3 for FX 34mm Airtubes

2.5" Plenum Mk3 for FX 34mm Airtubes

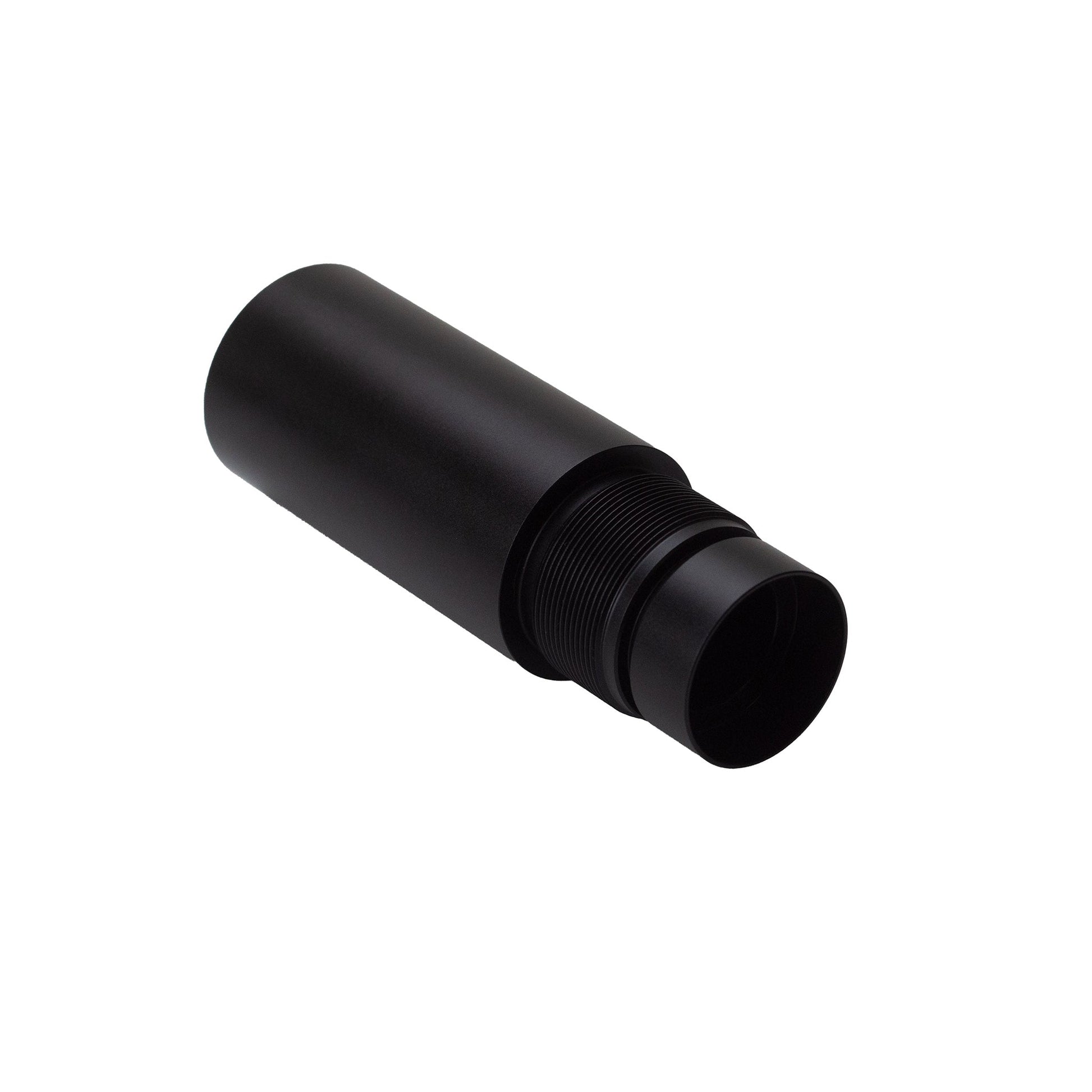

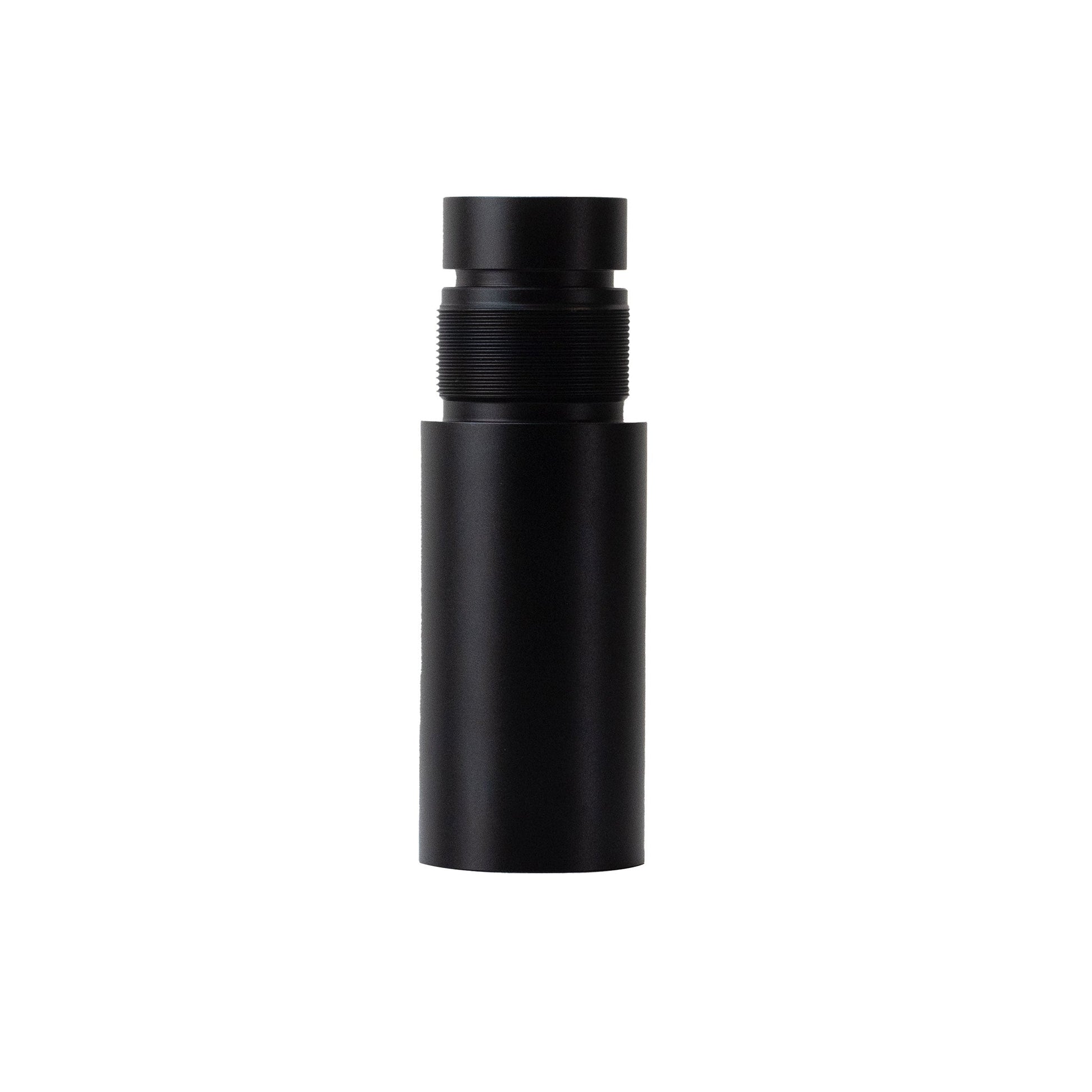

FX Wildcat MK3 Power Plenum

This newest model of the 2.5" plenum extension, originated by Ernest Rowe, has had special features added to the design here at 910 AGTR. This version has been made to accommodate the FX Wildcat MK3 "Gen1", but can be used on FX Wildcat MK1 and MK2, as well as the FX Streamline.

**Note** - This plenum is only intended to be used with the factory FX AMP tube regulator (silver regulator inside tube). Other regulators will void the warranty on this product.

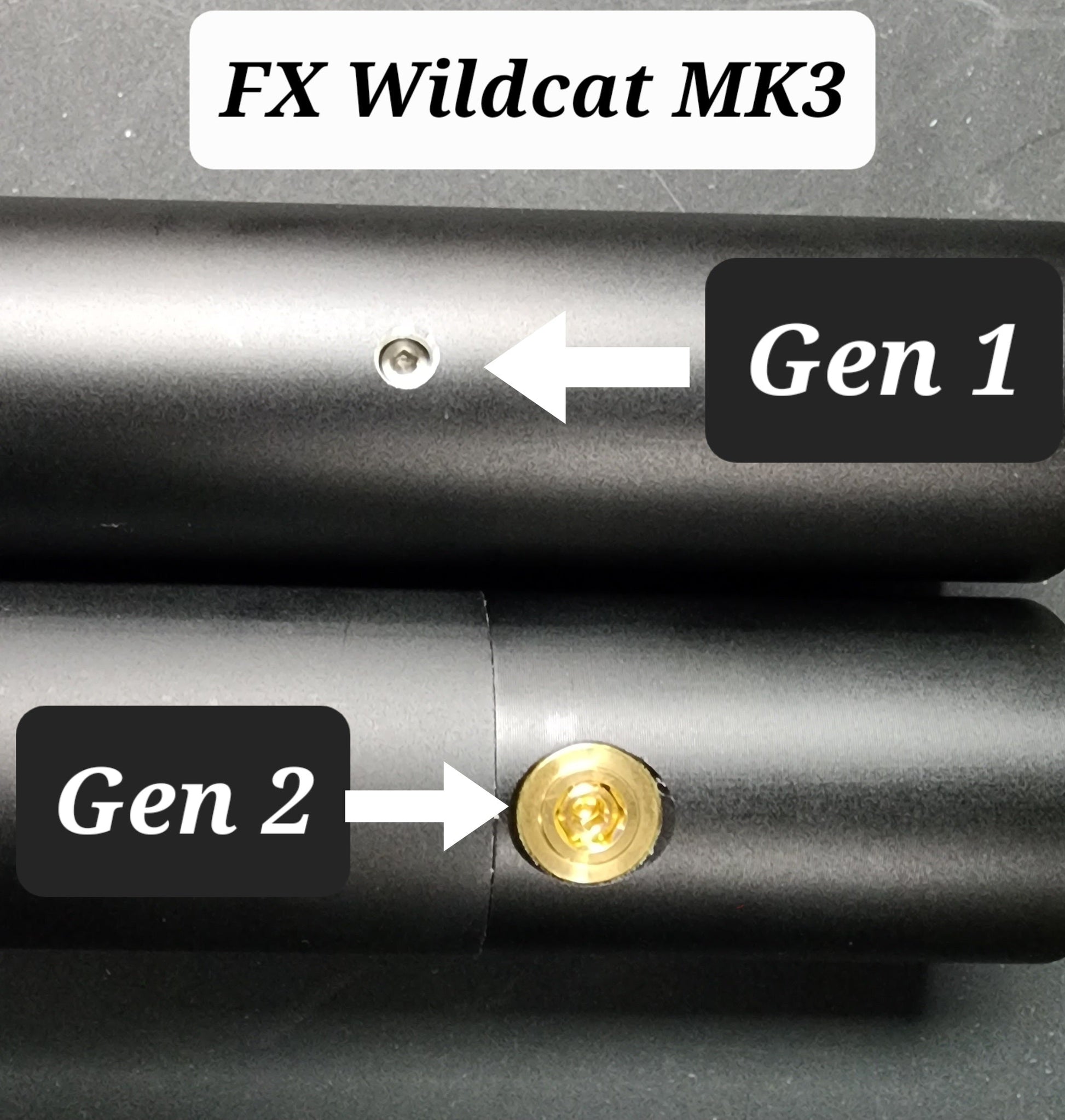

** NOT Compatible with "Gen2" Wildcat Mk3 (purchased new 2022>) **

For purchased new in 2022> (Gen2), please use the MK2 plenum. Thank you!

Now featuring the following aspects:

Made with spacecraft grade 7075-T6 Aluminum - for the utmost safety

Pressure tested past 350 Bar - for quality control

Internal diameter bored out more - to allow more volume

Built-in regulator spacer - for any FX Airguns 34mm air tube where the regulator uses a spacer

Don't worry about the weight - weighs less than 3 ounces!

Semi-gloss black finish - matched as close as possible to the FX air tube color

O-Rings included - Every plenum is shipped with 23x2.5 Buna 70 and Viton O-Rings.

Small spacer included to match regulator adjustment with air tube hole (if necessary)



Shroud Extension Options:

1.25" Shroud Extension

2.5" Shroud Extension

3.5" Shroud Extension


Note: NEVER exceed 230 Bar in your FX 34mm air tube! Just because the plenum can handle it, does not mean the air tube can.

Color is not exact match to the air tube due to the different material used.

Unfortunately, the plenum ended up being about 0.25mm smaller outside diameter than the FX 34mm air tube (measures 33.75mm OD). This will not cause any issue with the plenum, performance, or fitting, and is barely noticeable.



Comparison and In stall Video: https://youtu.be/ExmRsDRyRAo
